Everflow Sammys 8059957-100 CST 20 3/8 Inch Screw Vertically Threaded Rod Anchor Designed for Concrete Structure, Steel, Zinc Finish, Corrosion Resistance, 5/16 x 1-3/4 Inch Screw Length (pack of 100)

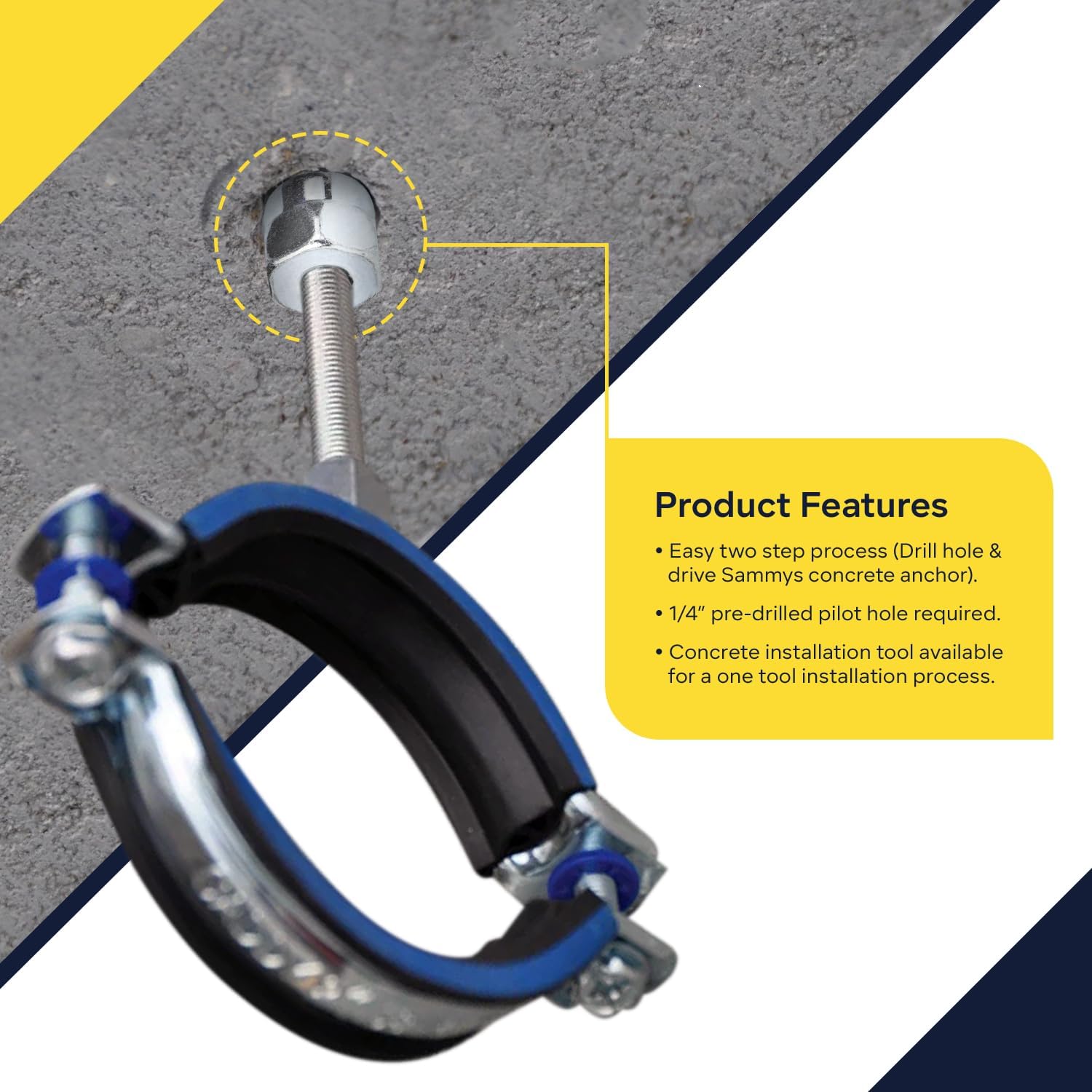

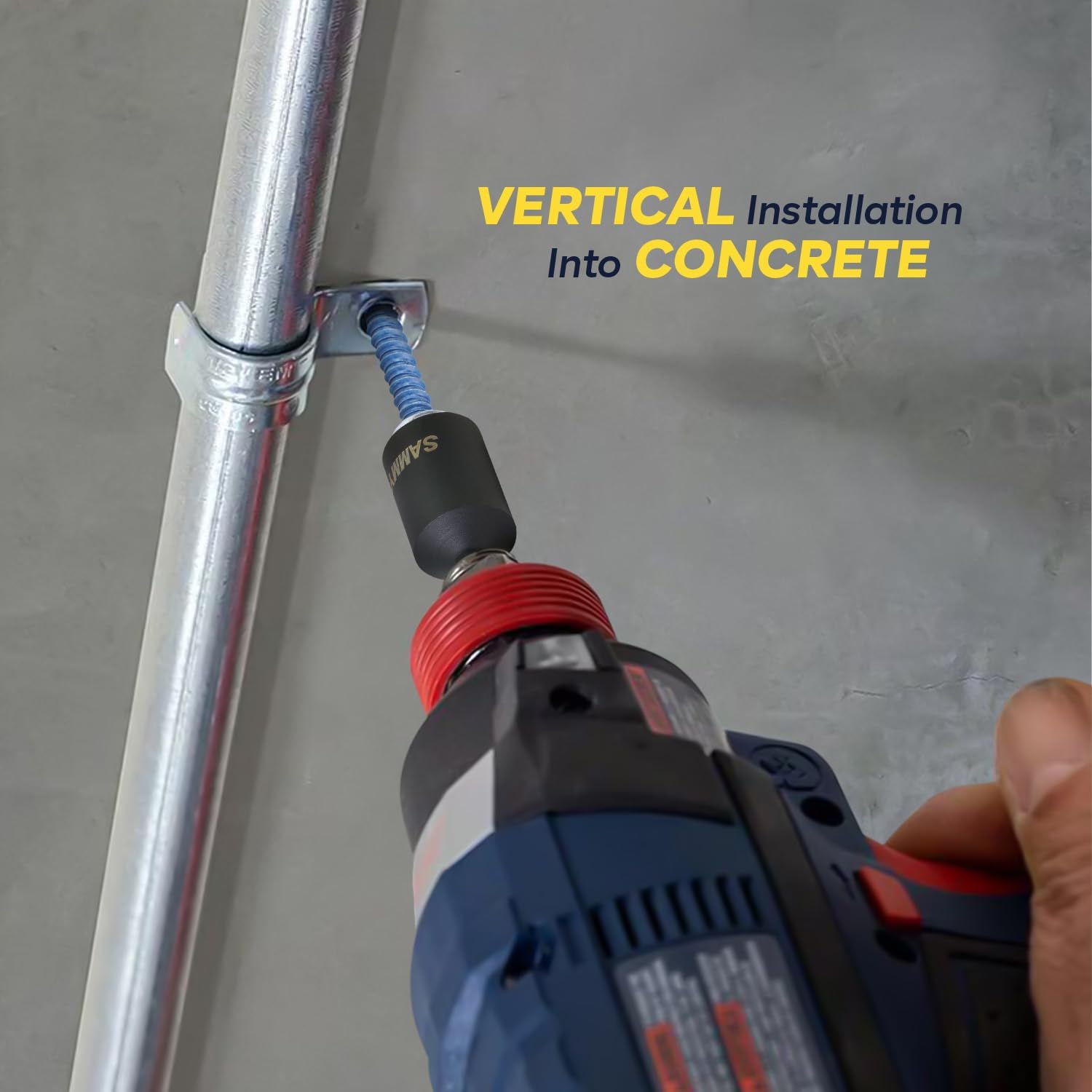

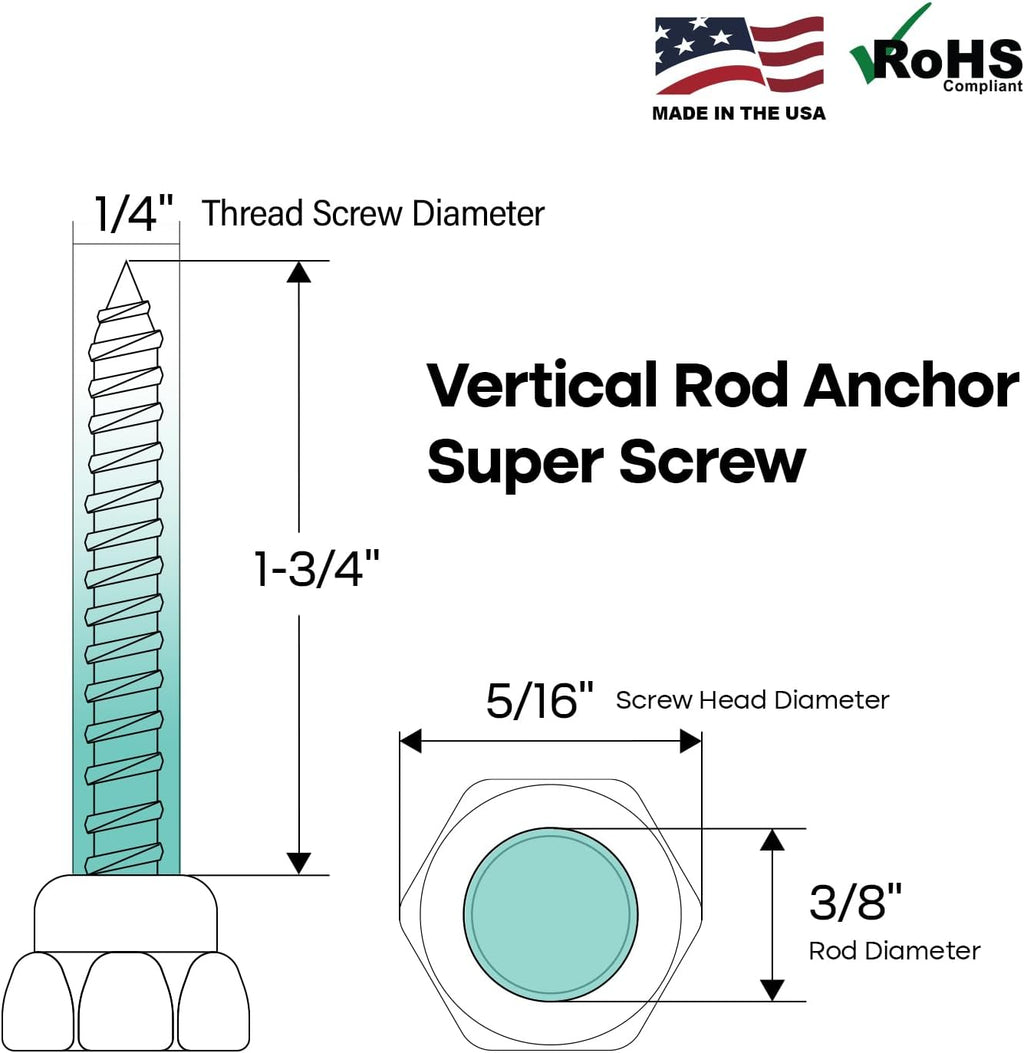

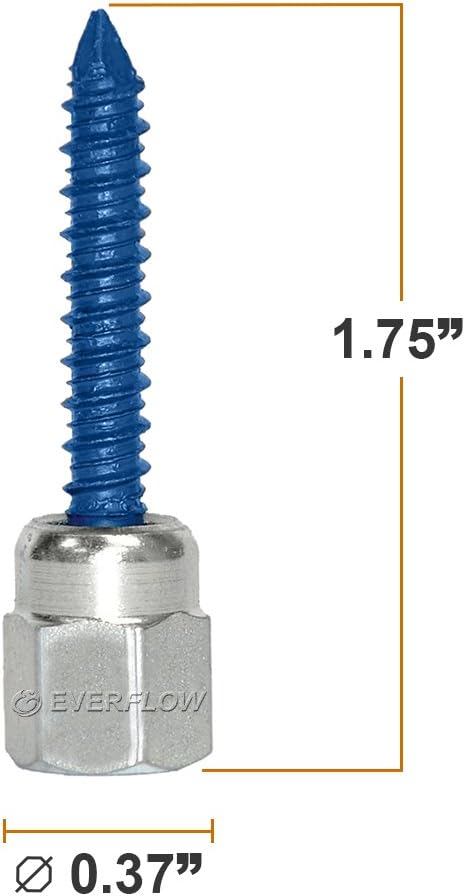

Everflow Sammys Installs Vertically into the Bottom of Concrete Structures for Hanging Threaded Rod. It is a self-drilling fastener, easy Two Step Process (Drill Hole & Drive Everflow Sammys concrete anchor); 1/4 inch pre-drilled pilot hole required. It is made up of Steel with Zinc-Climaseal Finish, it's Blue Delta Seal provides extended corrosion resistance. This design prevents snapping during installation and ensures a strong hold between screw and connector. Excellent for use in high-stress environments. It features a 5/16 x 1-3/4 inch screw length with threads for 3/8 inch rod. FM tests were performed in compliance with NFPA 13 Standards.

Features & Specs

• Compatible Groove Diameter : 0.25 Inches
• Drive System : External Hex
• Head Type : Flat
• Screw Head Style : Flat
• Screw Point Style : Self-Drill Point
• Set Screw Thread Type : UNC
• Thread Size : 1/4 20
• Thread Style : Right Hand
• Thread Type : Cst

Item details

• ASIN : B073M17WWX
• Brand : Sammys
• Color : Zinc
• Fastener Type : Screw
• Global Trade Identification Number : 00804595136720
• Included Components : Actual Item
• Item Type Name : Everflow Sammys 8059957-100 CST 20 3/8' Screw
• Item Weight : 7.2 Pounds
• Manufacturer : Sammys
• Model : 8059957-100
• Number Of Items : 4
• Part Number : 8059957-100
• Set Name : 100
• UPC : 804595136720
• Unit Count : 100.0 Count

Materials & Care

• Exterior Finish : Zinc,Steel
• Finish Types : Zinc
• Material Type : Alloy Steel, Zinc
• Metal Type : Zinc,Steel

Measurements

• Compatible Groove Diameter : 0.25 Inches
• Fastener Size : No. 14
• Item Dimensions : 12 x 12 x 20 inches
• Item Weight : 7.2 Pounds
• Number of Pieces : 100
• Size Name : Pack of 100
• Thread Coverage : Fully Threaded
• Thread Size : 1/4 20
